ColoRate

Large Format Dye-Sublimation Digital Print Solutions

Roll Width

Productivity

Resolution

Large Format Dye-Sublimation Digital Print Solutions

Setting new standards in high resolution dye-sublimation printing for vibrant indoor or outdoor applications.

Realize new business opportunities and increase profits with this range of precision large format digital printers

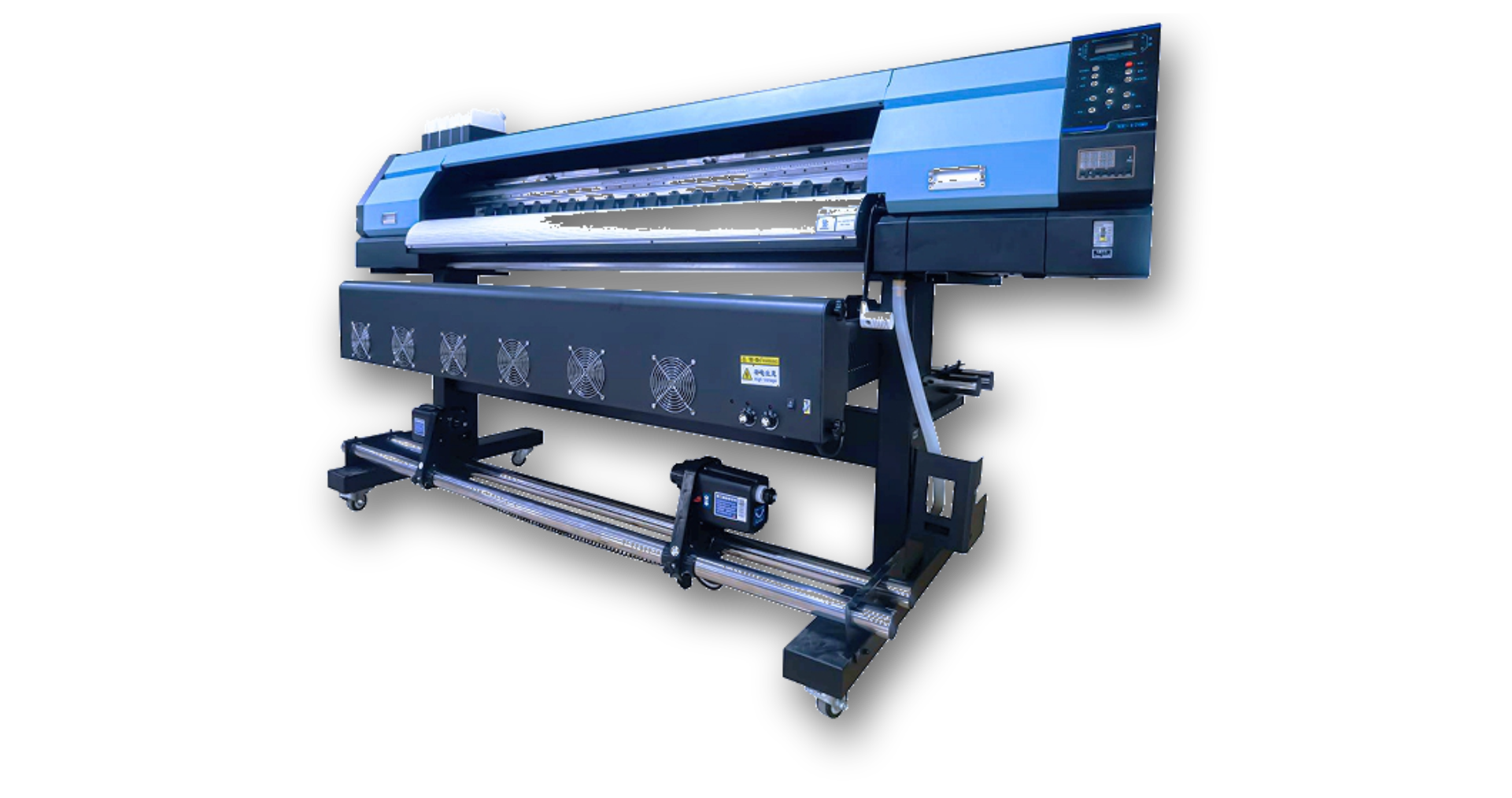

The ColoRate precision roll-to-roll printer combines outstanding print quality, speed and performance.

Designed for multi-functional printing requirements, these printers can reach a print speed of up to 240 sqm/hour (2-pass I 8 heads) and comfortably supports high throughput production environments.

The robust design with its aluminium alloy girder and imported THK width linear guide rails and double sliders means reliable performance and lower maintenance costs. The automatic feed and take up system provides stable media support and easy loading.

  • i3200 Epson print heads for high image quality, density and precision printing. Unique MEMS nozzles and Variable Sized Droplet Technology. (Support for grey-scale.)
  • Standard bulk ink system positioned on the top of the printer. Inks levels are easy to monitor and refill.
  • Intelligent media sensor.
  • Metal optical cables connecting the main board to the carriage board supports fast and stable data transfers.
  • Auto clean and auto capping system.
  • A unique software solution allows for remote support on most functions.
  • 12-month warranty (Excluding print heads)
  • Supported by proven SignTronic ink technology.

Printheads Epson i3200 Precision Core Technology
Resolution
1440dpi
Max Print Width
1650mm (1.65m)
Ink Colour
Sign-Tronic E-Series Dye-Sublimation Inks
(CMYK)
Print Speed One Head (Model 1601)
2-Pass 40
4-Pass 20
Two Head (Model 1602)
2-Pass 80
4-Pass 40
Four Head (Model 3204)
2-Pass 150
4-Pass 75
Eight Head (Model 3208)
2-Pass 150
4-Pass 75
Printer Size 2.7m x 0.8m x 1.2m
Printer Weight 250kg
Computer I5, 1TB SSD, 16Gb Ram, Gigabit ethernet
Power 1500 watt
Environment Ambient Temperature: 20 – 25 °C.
Good ventilation, dirt and dust free.

Printheads Epson i3200 Precision Core Technology
Resolution
1440dpi
Max Print Width
3200mm (3.2m)
Ink Colour
Sign-Tronic E-Series Dye-Sublimation Inks
(CMYK)
Print Speed One Head (Model 1601)
2-Pass 40
4-Pass 20
Two Head (Model 1602)
2-Pass 80
4-Pass 40
Four Head (Model 3204)
2-Pass 150
4-Pass 75
Eight Head (Model 3208)
2-Pass 150
4-Pass 75
Printer Size 4.5m x 1.2m x 1.3m
Printer Weight 750kg
Computer I5, 1TB SSD, 16Gb Ram, Gigabit ethernet
Power 4500 watt
Environment Ambient Temperature: 20 – 25 °C.
Good ventilation, dirt and dust free.
